Tailor to Any Applications, Any Hot Water Needs with JNOD.
Your Trusted Partner for Energy-Efficient and Reliable Electric Hot Water Solutions.

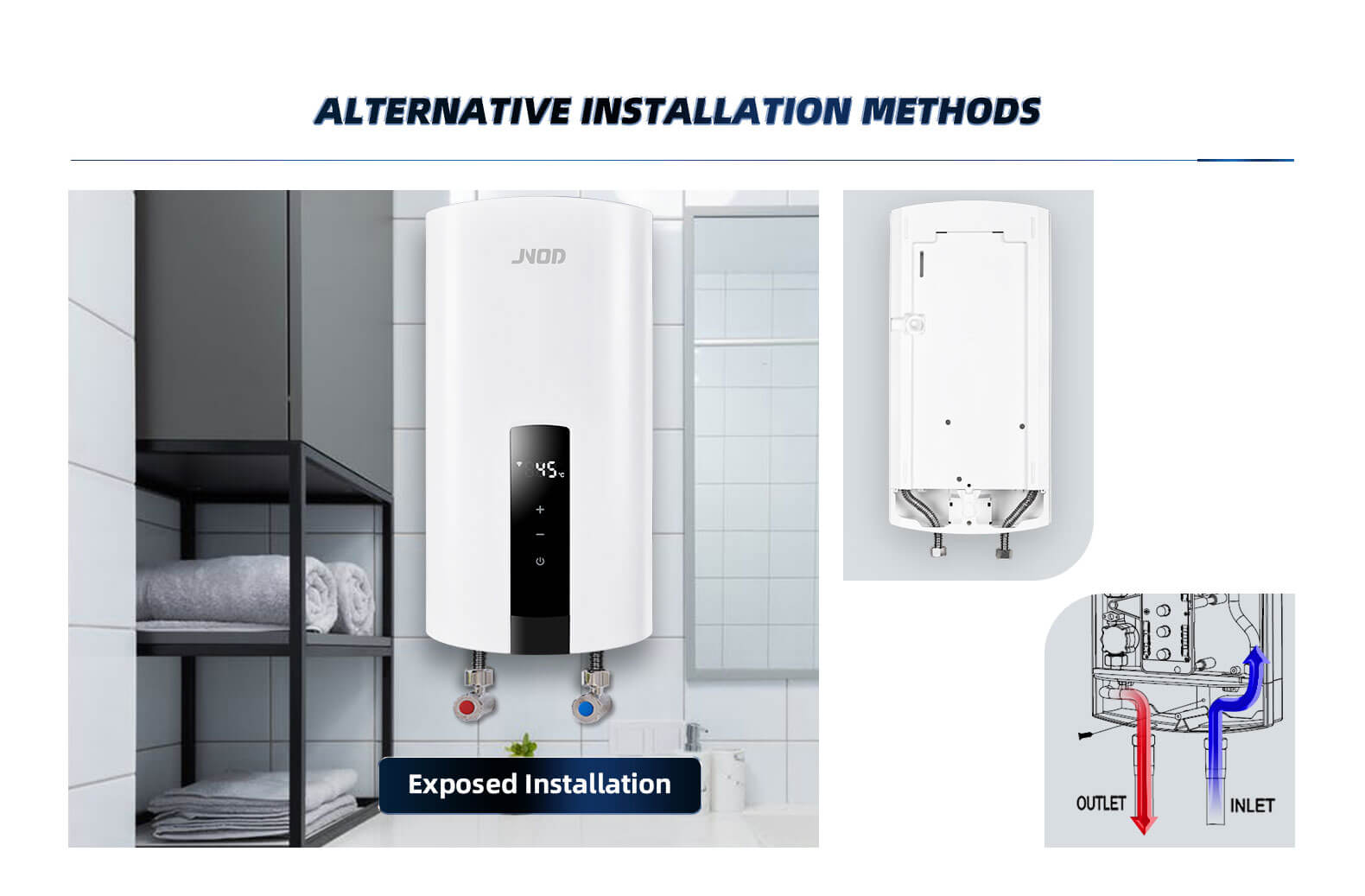

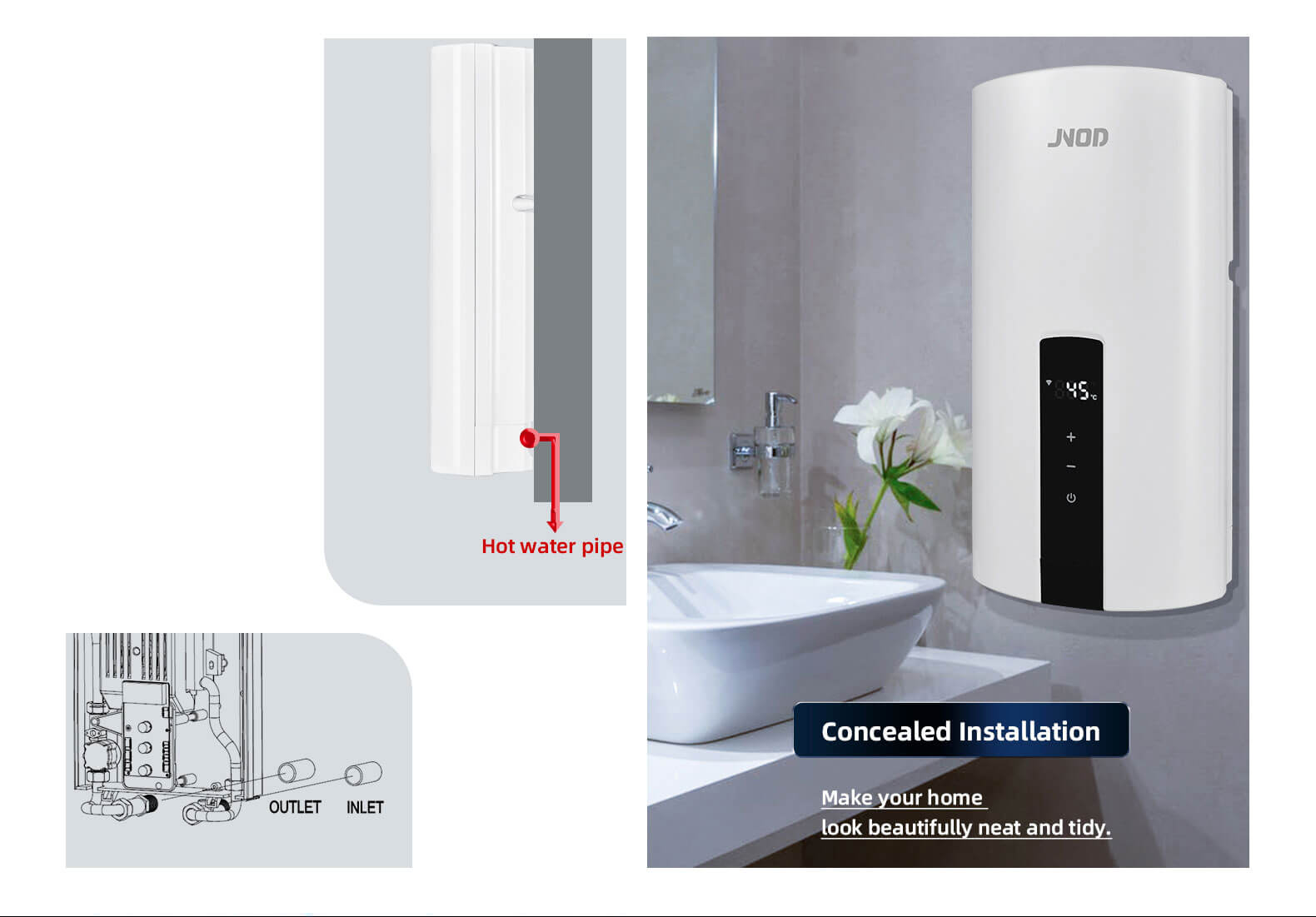

【Modern Design】The three phase hot water heater has trendy and modern design with flexible water connection which can be hidden or exposed to meet various demands.
【Zero-cold Water Function】Applies with JNOD’s original patent zero cold water technology, hot water can be used at any time, so that your shower does not have to wait, making more at will.

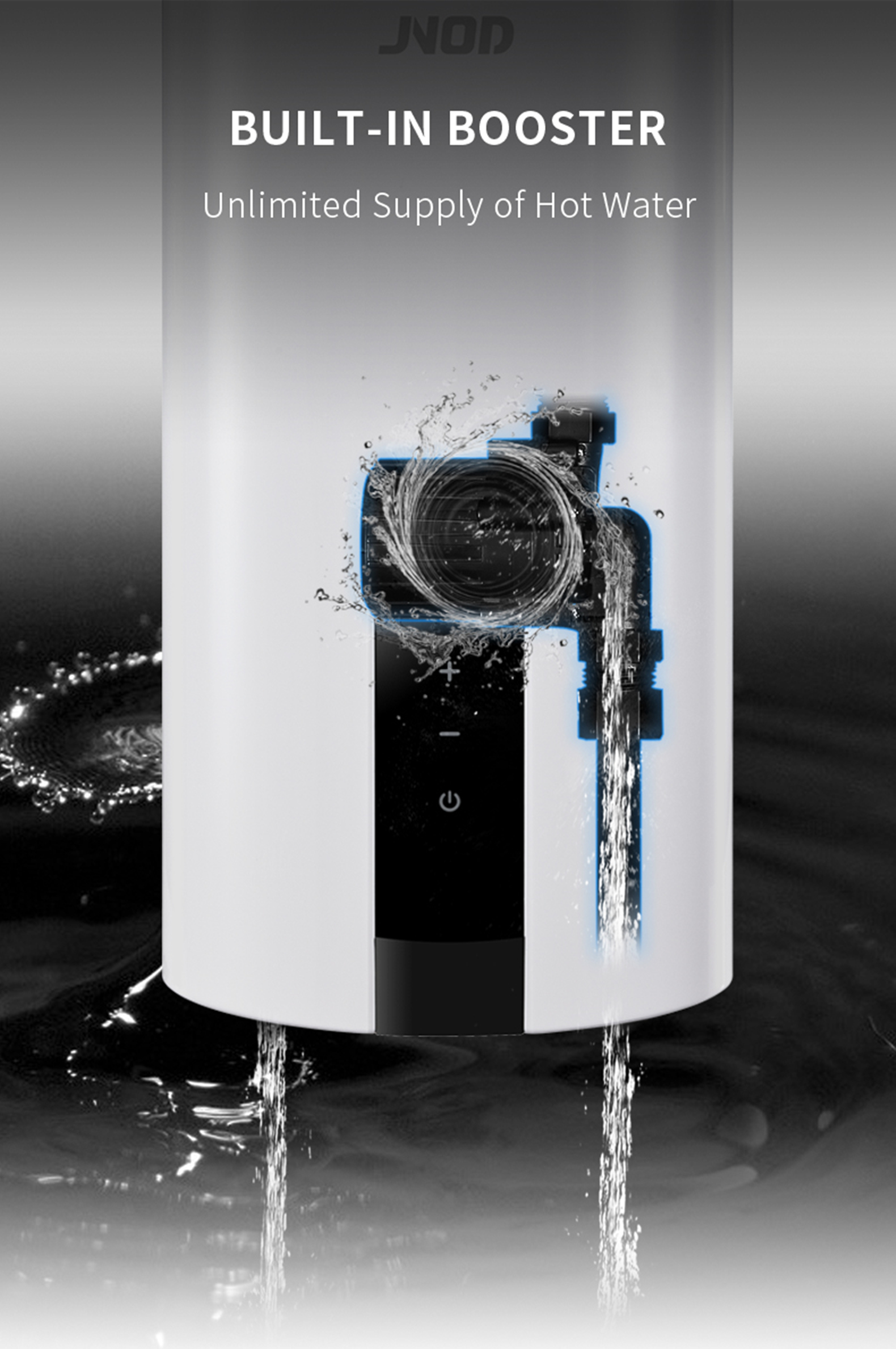

【Multifuction & Easy Installation】Direct temperature setting by smart wifi app, remote control or sensitive touch screen key. It comes with the built in silent DC pump to boost the water pressure. Easy wall mounted installation with brackets on the back only.

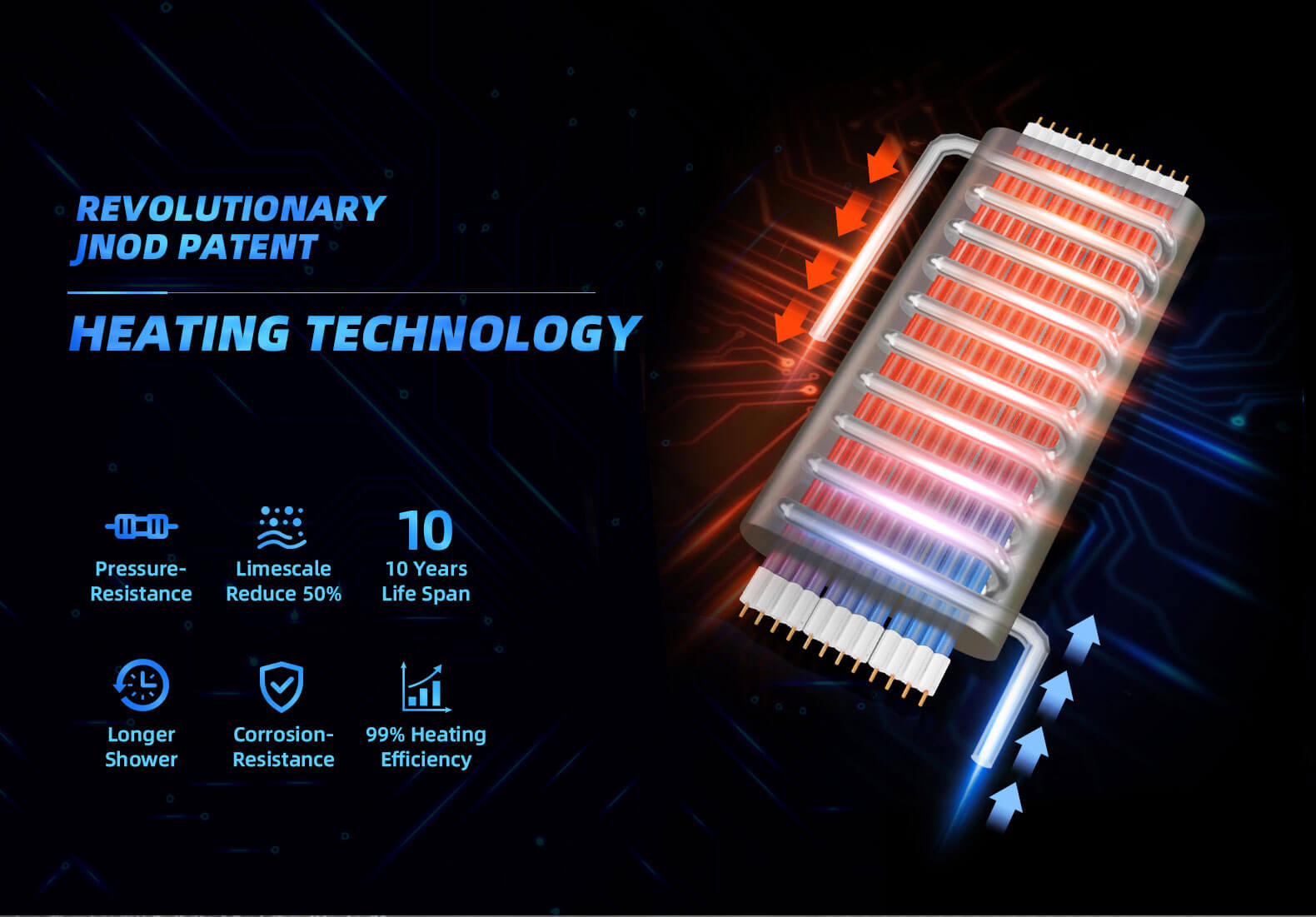

【Patent Heating Technology】Use with JNOD patent cast aluminum electric heating element, water and electricity isolation, safe to use. With multi-layer structure heating chamber from a long circulating water channel, no limescale and longer lifespan.
【Multiple Safe Protection】Comes with overheat protection, IP25 waterproof, over pressure protection , anti-scalding protection and leakage protection. With fault auto-detection technique, the cause will be displayed automatically with failure.
【Fast & Endless Central Water Supply】Consistent hot water when you need it that never runs out; Continuously monitored water temperature and controlled flow rates ensure efficiency and consistent performance within 1 degree of selected temperature.
【Energy Save】JNOD Insatant electric water heaters are 98% thermal energy efficient, you can get hot water within 5 seconds; Only heats water when called unlike a tank heater that maintains water temperature even when not being used.
| Model | FM-Z |
| Colors | White / Green / Customized |
| Rated Voltage | 400V 3~ |
| Phase | 3 Phase |
| Rated Power | 9kW/ 12kW/ 15kW/ 18kW/ 21kW/ 24kW |
| Control | Touch Screen / Smart Wifi Control / Remote Control |
| Function | Zero Cold Water Function & Built In DC Pump |
| Heating Element | Cast Aluminum |
| Overheat Protection | 72℃ |
| Thermal Cut-out | 90℃ |
| Temp. Setting Range | 30-60℃ |
| Certificate | CE CB LVD EMC |
| Rated Pressure | 0.02-0.6MPa |
| Pipe Section | G1/2" |
| Application | Bathroom, kitchen, hotel, commercial, apartment, shopping mall etc |

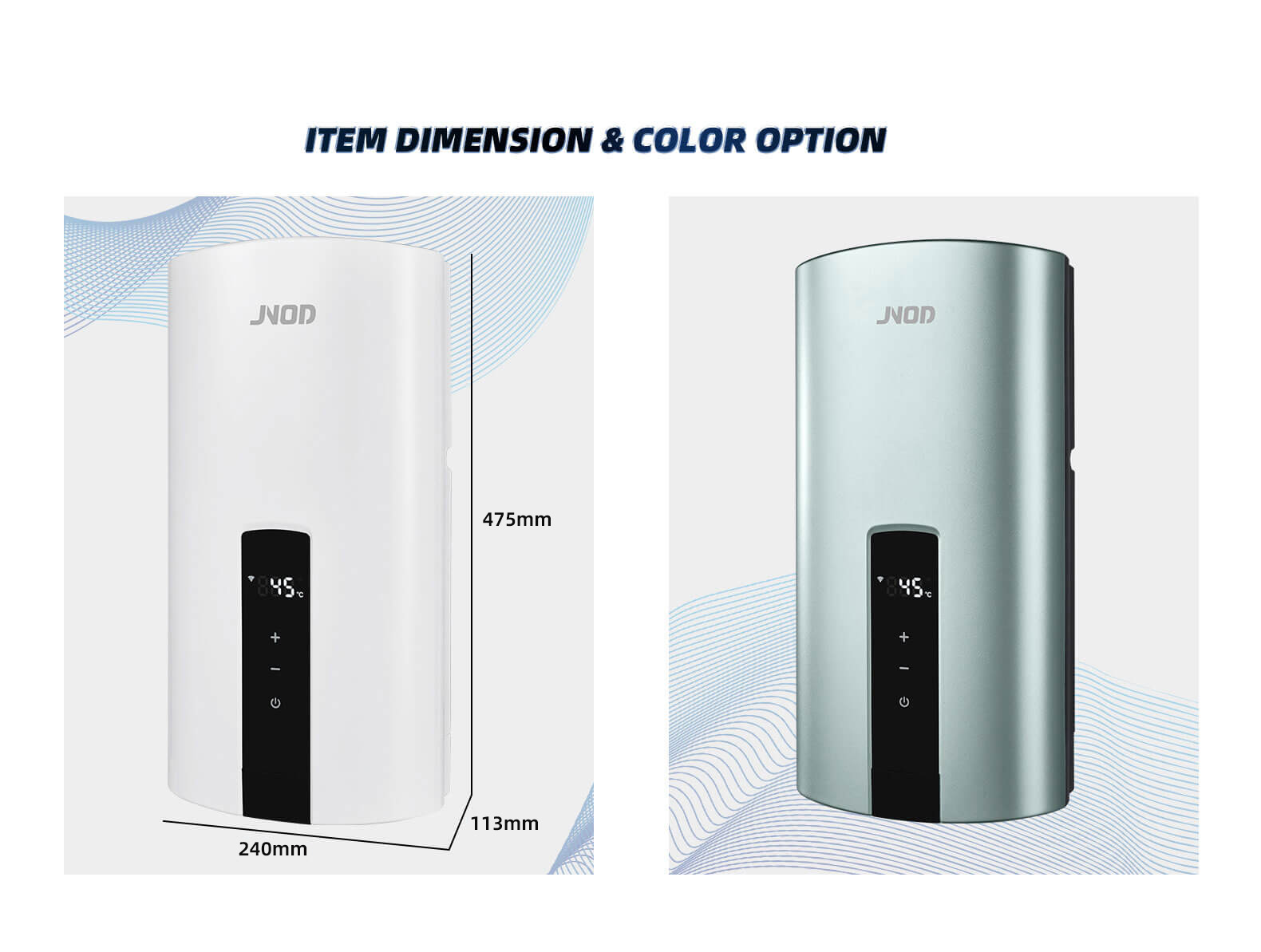

| Product Size | 400*225*83mm |
1. High strength ABS cover casing
2. Adopts patent heating technology-enclosed loop heating system, instant hot water with less heating loss, the insulation material which totally seperates water from electricity.
3. Multi-layer structure heating chamber from a long circulating water channel, no limescale, long lifespan.
4. Electriciy leakage protection, anti-scalding protection, over-pressure and overheat protection. Water and electricity isolation protection.
5. Direct temperature setting, automatic thermostat, the water tempearture will be constant. Automatic memory function avoid operation.
6. IP25 Waterproof
7. LED widescreen display the working condition, setting temperature and outlet temperature.
8. Fault auto-detection technique, the cause will be displayed automatically while failure.
9. Electronically controlled to accurately regulate the output water temperature, compensates for fluctuations in pressure and temperature changes. Accurate temperature delivery selection between 30 and 60 °C

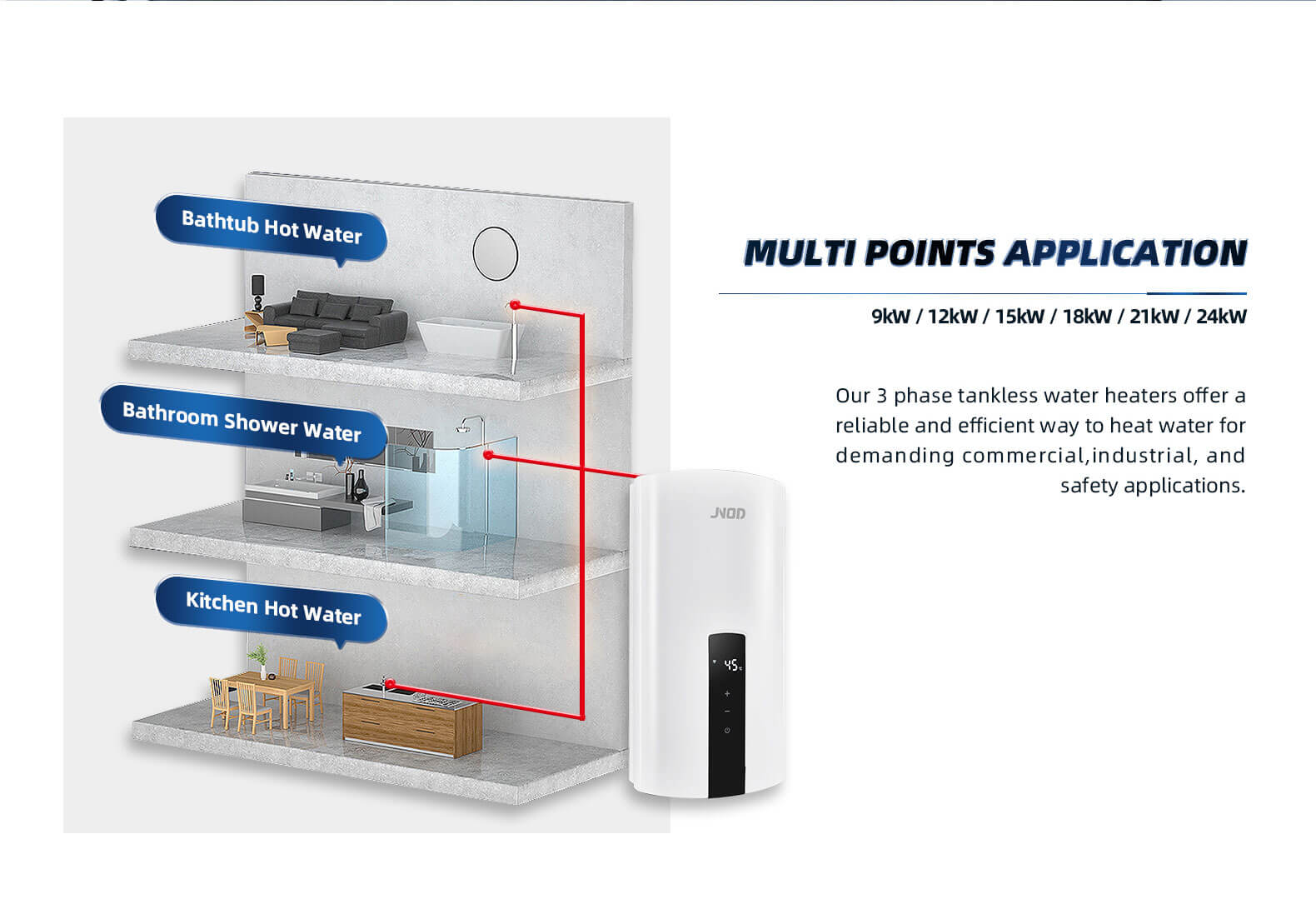

10. Applicationsof 3 phase instant hot water heaters include but are not limited to:
* Hand basins – multiple
* Showers
* Kitchens / laundries
* Apartments / Units
* Residential homes
* Commercial water heating solutions
* Industrial water heating
