Tailor to Any Applications, Any Hot Water Needs with JNOD.
Your Trusted Partner for Energy-Efficient and Reliable Electric Hot Water Solutions.

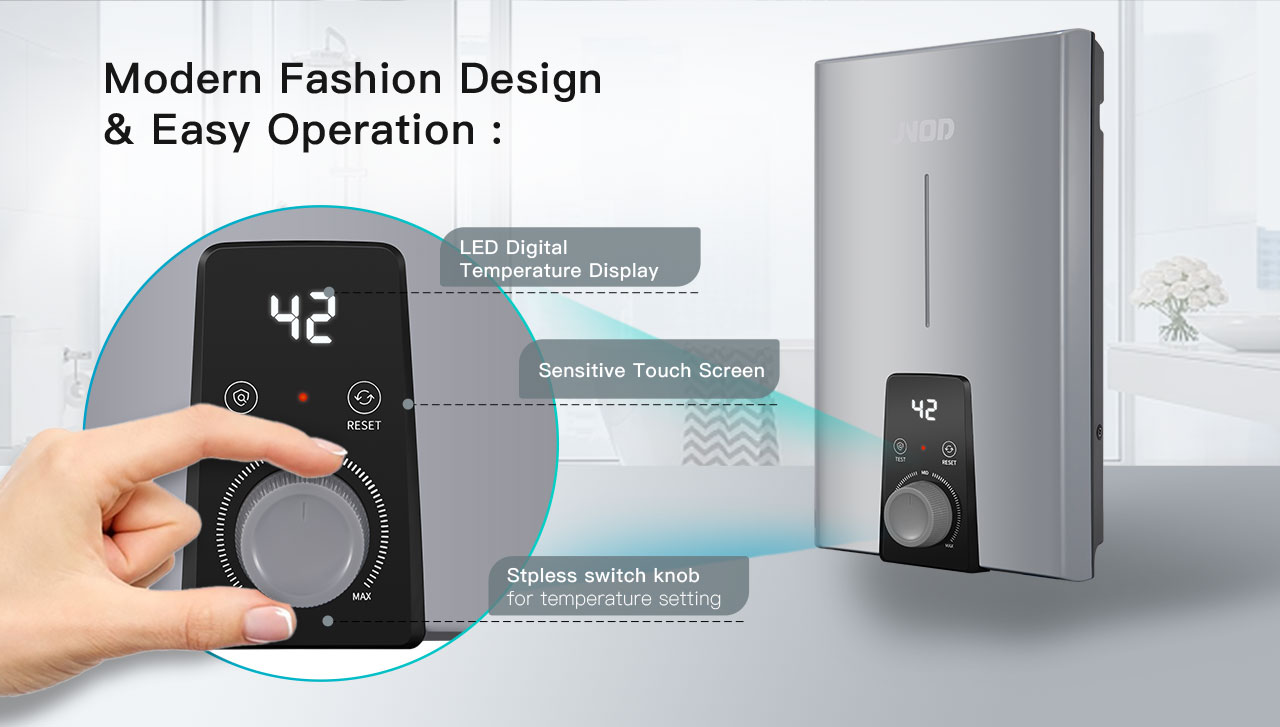

【Modern Design】The instant hot water heater has trendy and modern design with High quality ABS case, easy to control the water temperature with sensitive touch screen panel.
【Space Save】90% smaller than traditional tank heaters; may be installed on wall, at point of use or multi points use.

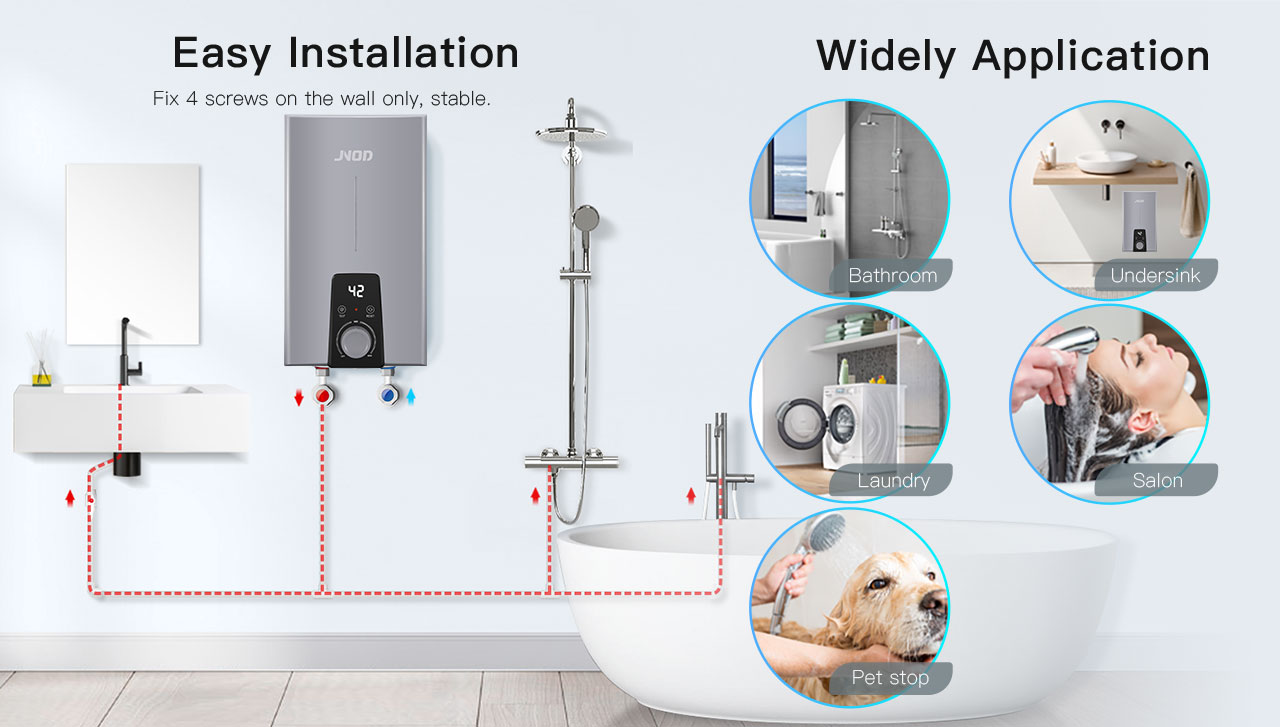

【Easy Operation & Installation】Direct temperature setting by the touch screen key & stepless knob switch smoothly. Easy wall mounted installation with brackets on the back only.
【Patent Heating Technology】Use with JNOD patent cast aluminum electric heating element, water and electricity isolation, safe to use. With multi-layer structure heating chamber from a long circulating water channel, no limescale and longer lifespan.

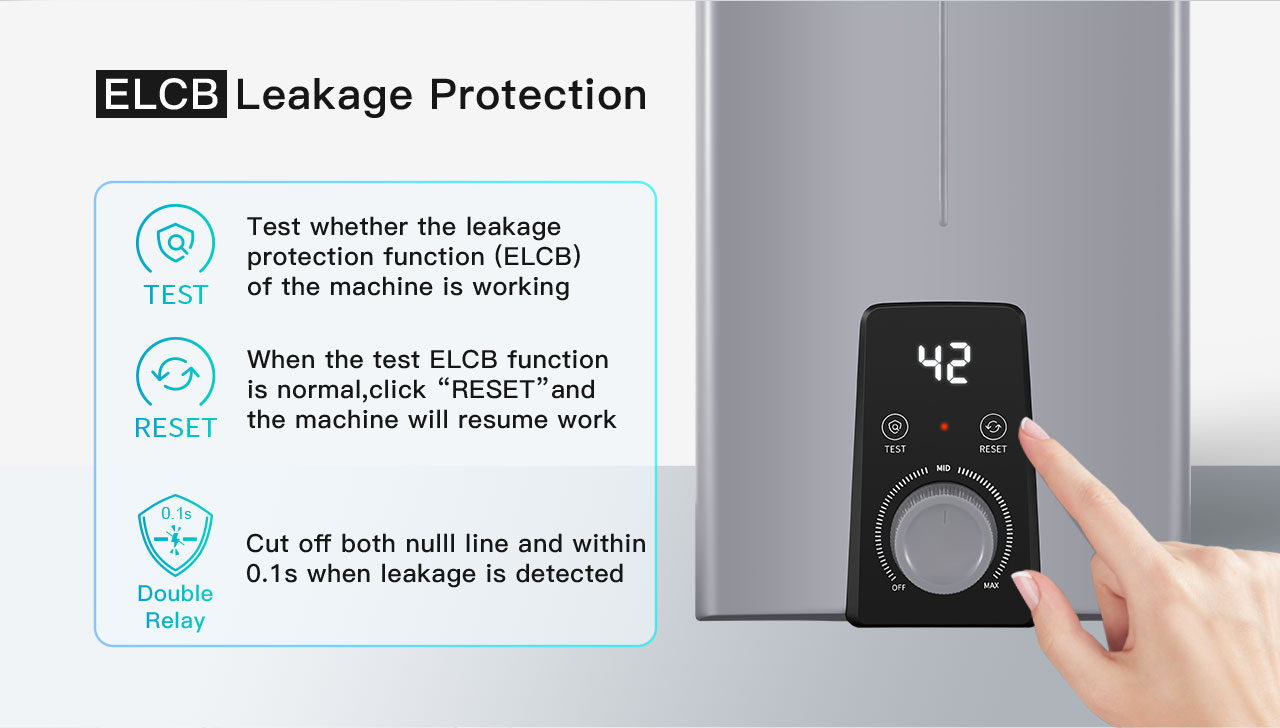

【ELCB Leakage Protection】Comes with Test & Reset key, will cut off both null line within 0.1s when leakage is detected.
【Multiple Safe Protection】Comes with overheat protection, IP25 waterproof, over pressure protection , anti-scalding protection and leakage protection. With fault auto-detection technique, the cause will be displayed automatically with failure.
【Fast & Endless Hot Water Supply】Consistent hot water when you need it that never runs out; Continuously monitored water temperature and controlled flow rates ensure efficiency and consistent performance within 1 degree of selected temperature.
【Energy Save】JNOD Insatant electric water heaters are 98% thermal energy efficient, you can get hot water within 5 seconds; Only heats water when called unlike a tank heater that maintains water temperature even when not being used.
【Multifunction】LED widescreen touch display the working condiction, inlet & outlet water temperature.
| Model | QA-K |
| Colors | Grey/ White / Customized |
| Rated Voltage | 220-240V 50/60Hz |
| Phase | 1 Phase |
| Rated Power | 3.5kW/ 4.5kW/ 5.5kW |
| Heating Element | Cast Aluminum |
| Control Mode | Touch Screen / Stepless Knob Switch |
| Wire Section | 2.5mm² |
| Thermal Cut-out | 95℃ |
| Temp. Setting Range | 30-55℃ |
| Certificate | CE CB LVD EMC |
| Rated Pressure | 0.02-0.6MPa |
| Housing Material | High Quality ABS |
| Pipe Section | G1/2" |
| Application | Bathroom, kitchen, hotel, commercial, apartment, shopping mall etc |
| Product Size | 330*190*170mm / 488*282*102mm |
1. ELCB leakage protection
2. Built in pressure relief valve
3. Stepless rotary knob for direct temperature setting from 30 to 55℃
4. Unique design front cover, water splashing proof, corrosion resisting, ageing resisting
5. Adopts patent heating technology-enclosed loop heating system, instant hot water with less heating loss, the insulation material which totally seperates water from electricity.
6. Multi-layer structure heating chamber from a long circulating water channel, no limescale, long lifespan.
7. Electriciy leakage protection, anti-scalding protection, over-pressure and overheat protection. Water and electricity isolation protection.
8. Direct temperature setting, automatic thermostat, the water tempearture will be constant. Automatic memory function avoid operation.
9. IP25 Waterproof
10. LED widescreen display the working condition, inlet & outlet temperature.
11. Fault auto-detection technique, the cause will be displayed automatically while failure.
